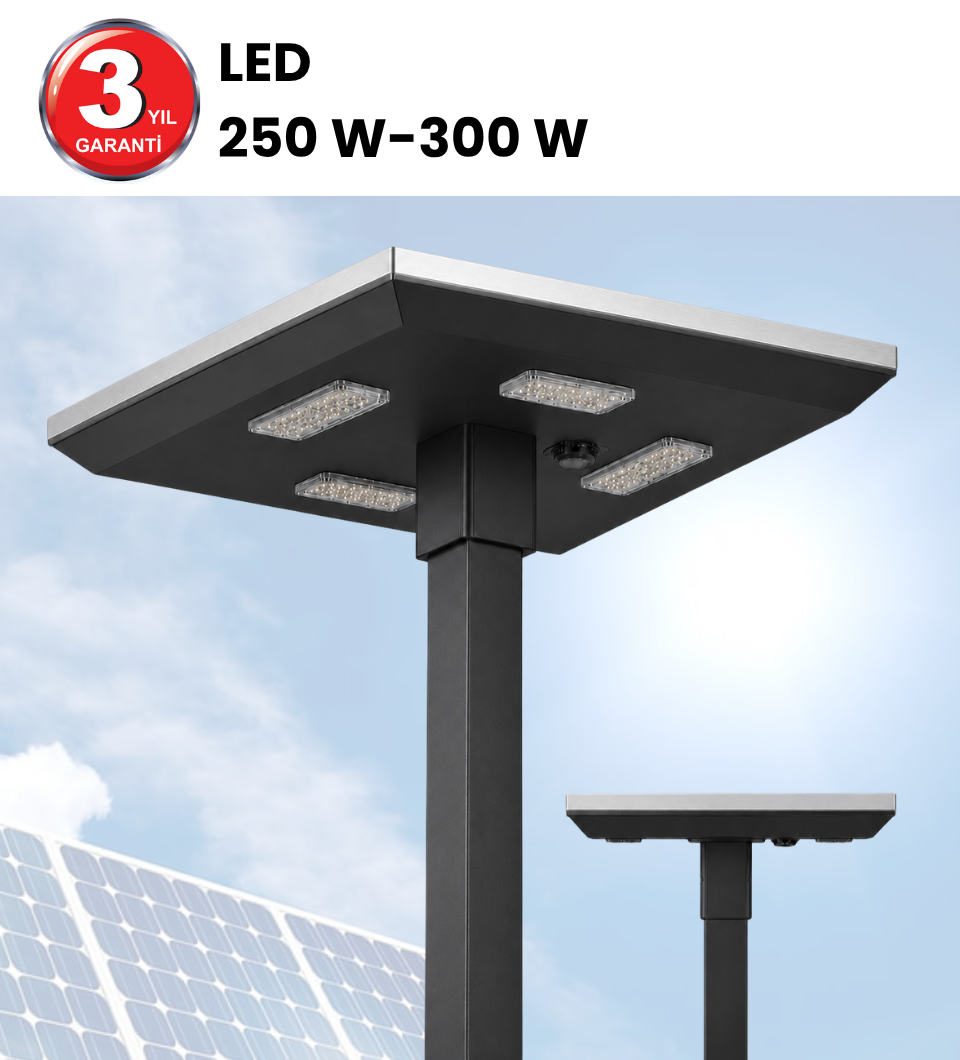

YKN Green Power UFO 12V 250w-300w Solar Lighting Fixture All in One

Y.A.130070 Solar Lighting Fixture

The Y.A.130070 Solar Lighting Fixture has been developed to meet outdoor lighting requirements with its high-efficiency monocrystalline solar panel, LiFePO4 battery system, and advanced solar optical lens technology. Delivering lighting performance equivalent to conventional 250W–300W systems, the fixture is suitable for parks, gardens, pedestrian walkways, facility perimeters, and various open-area lighting applications.

The high-efficiency 90° solar optical lens is specially designed to enhance lighting effectiveness by up to 4.5 times. With an average luminous output of 3,740–6,700 lumens and an average illumination level of 15–25 lux, the fixture can illuminate an area of approximately 160–200 m² when installed at a height of 6 metres.

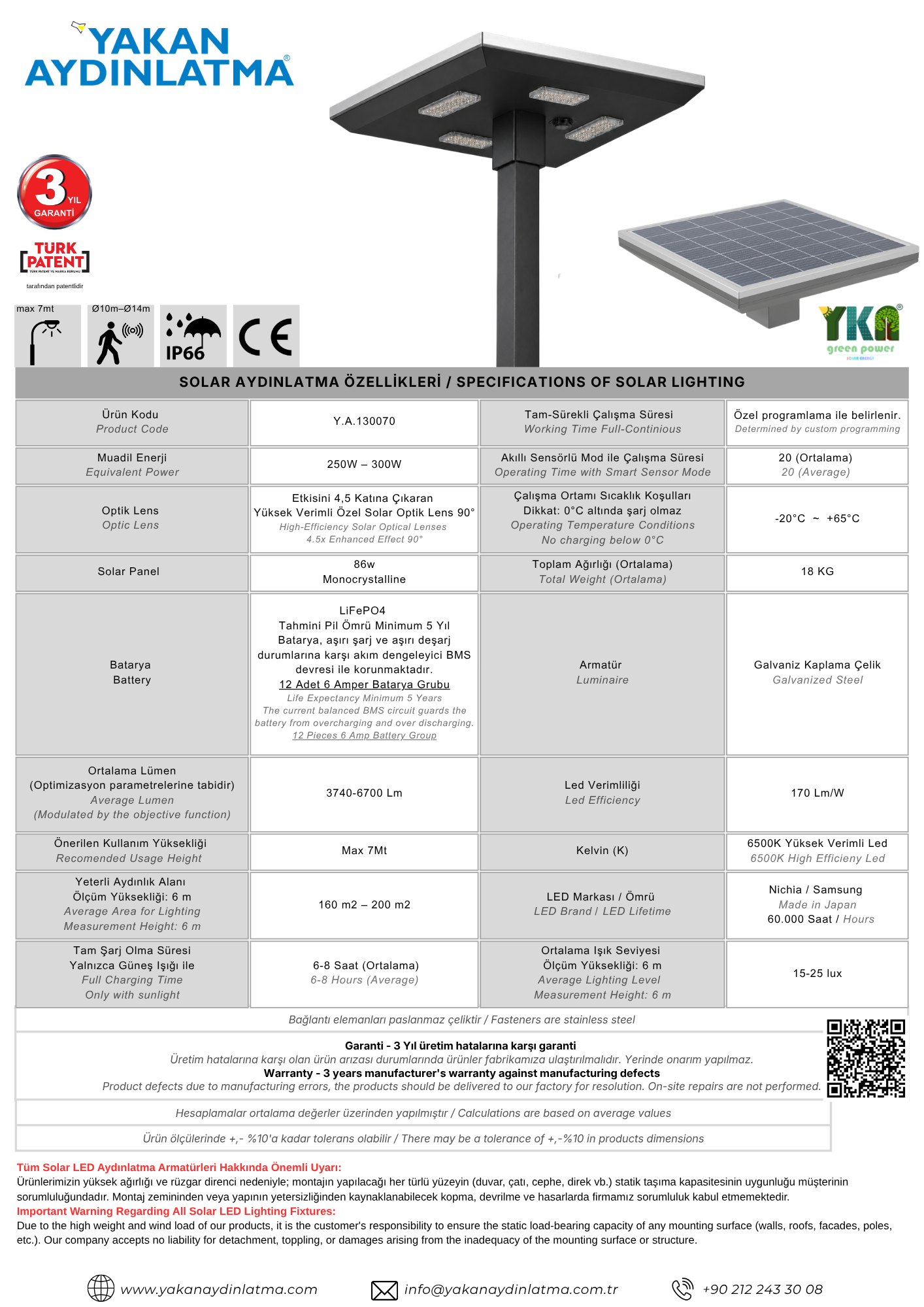

Technical Specifications

Product Code: Y.A.130070
Equivalent Power: 250W–300W
Solar Panel: 86W monocrystalline solar panel
Battery Type: LiFePO4 battery system
Battery Pack: 12 × 6 Ah battery units
Estimated Battery Life: Minimum 5 years at full performance
LED Efficiency: 170 lm/W
Colour Temperature: 6500K high-efficiency LED
LED Brand / Service Life: Nichia / Samsung — 60,000 hours
Average Luminous Output: 3,740–6,700 lm
Recommended Installation Height: Maximum 7 metres
Effective Illumination Area: 160–200 m²
Average Illumination Level: 15–25 lux
Full Charging Time: Approximately 6–8 hours using sunlight only
Operating Time in Smart Sensor Mode: Approximately 20 hours
Continuous Full-Power Operating Time: Determined according to custom programming settings
Operating Temperature: −20°C to +65°C
Important: The battery does not charge at temperatures below 0°C; however, the lighting function continues to operate.
Fixture Body: Galvanised coating with electrostatic polyester powder coating
Fasteners: Stainless steel
Total Weight: 18 kg

Battery and Protection System

The fixture is equipped with a long-life LiFePO4 battery. The battery is protected against overcharging and excessive discharge by a current-balancing Battery Management System (BMS).

This protection system helps preserve battery life while ensuring safer and more reliable operation of the fixture.

Usage and Performance Notes

The operating time may vary depending on sunlight conditions, installation location, programming settings, and the selected operating mode. All performance calculations are based on average operating conditions.

Product dimensions may be subject to a tolerance of up to ±10%.

Warranty

The product is covered by a 3-year warranty against manufacturing defects.

In the event of a malfunction caused by a manufacturing defect, the product must be delivered to our factory for inspection and resolution. On-site repair services are not provided.
