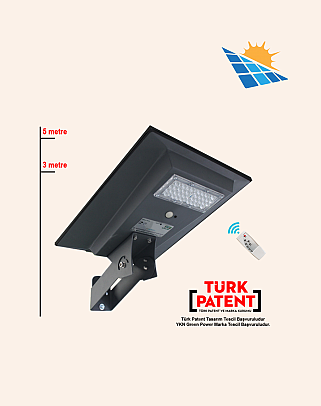

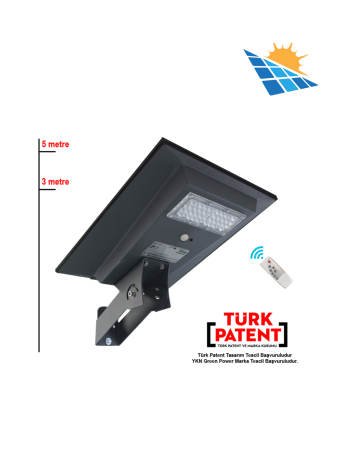

Solar Street Light – YKN Green Power, 36 × 48 cm, 3.2 V, 100–150 W Equivalent, All-in-One
Yakan Lighting
Product Code : Y.A.127032
Add Cart
How do I get an offer for products?
How do I order?

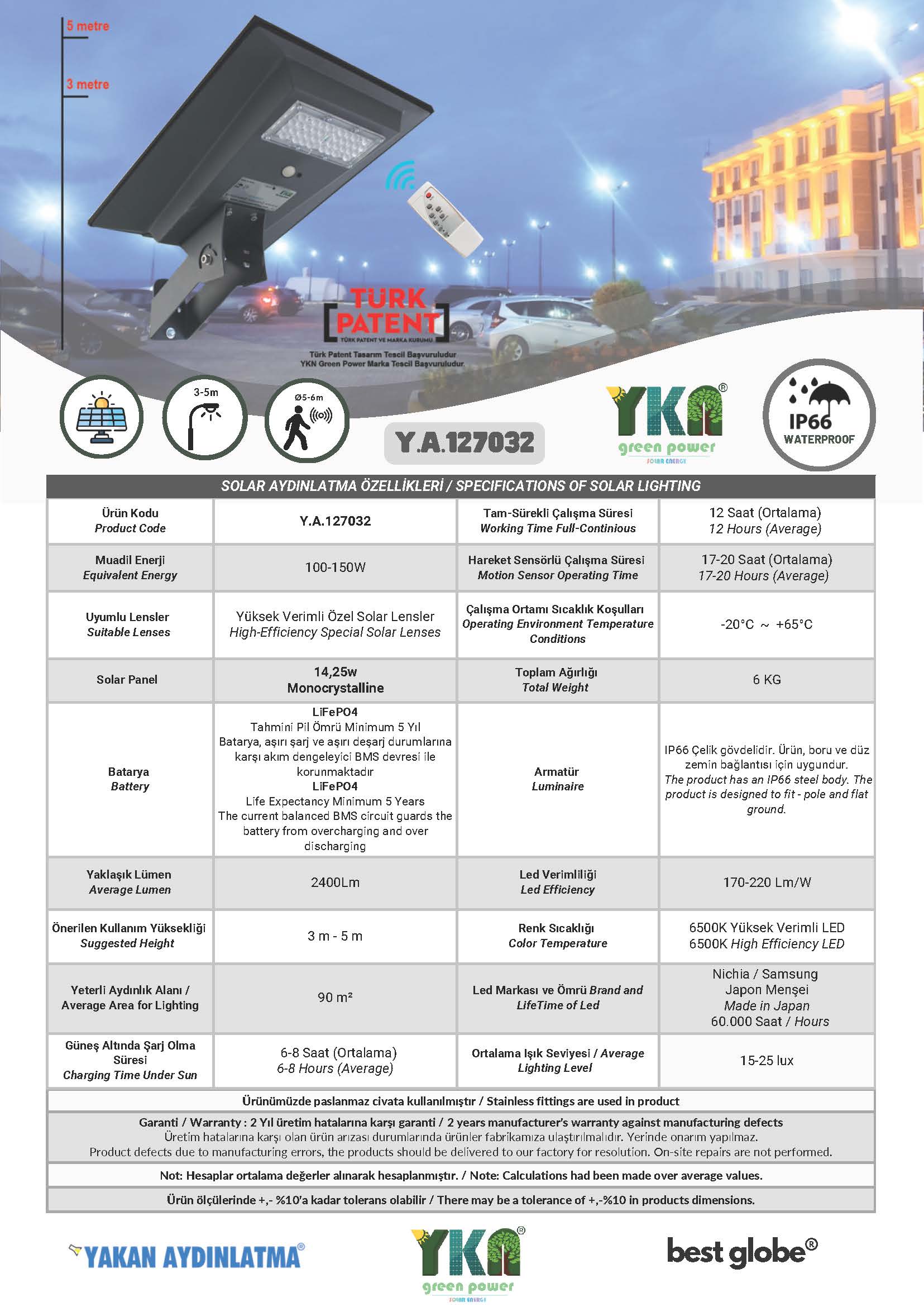

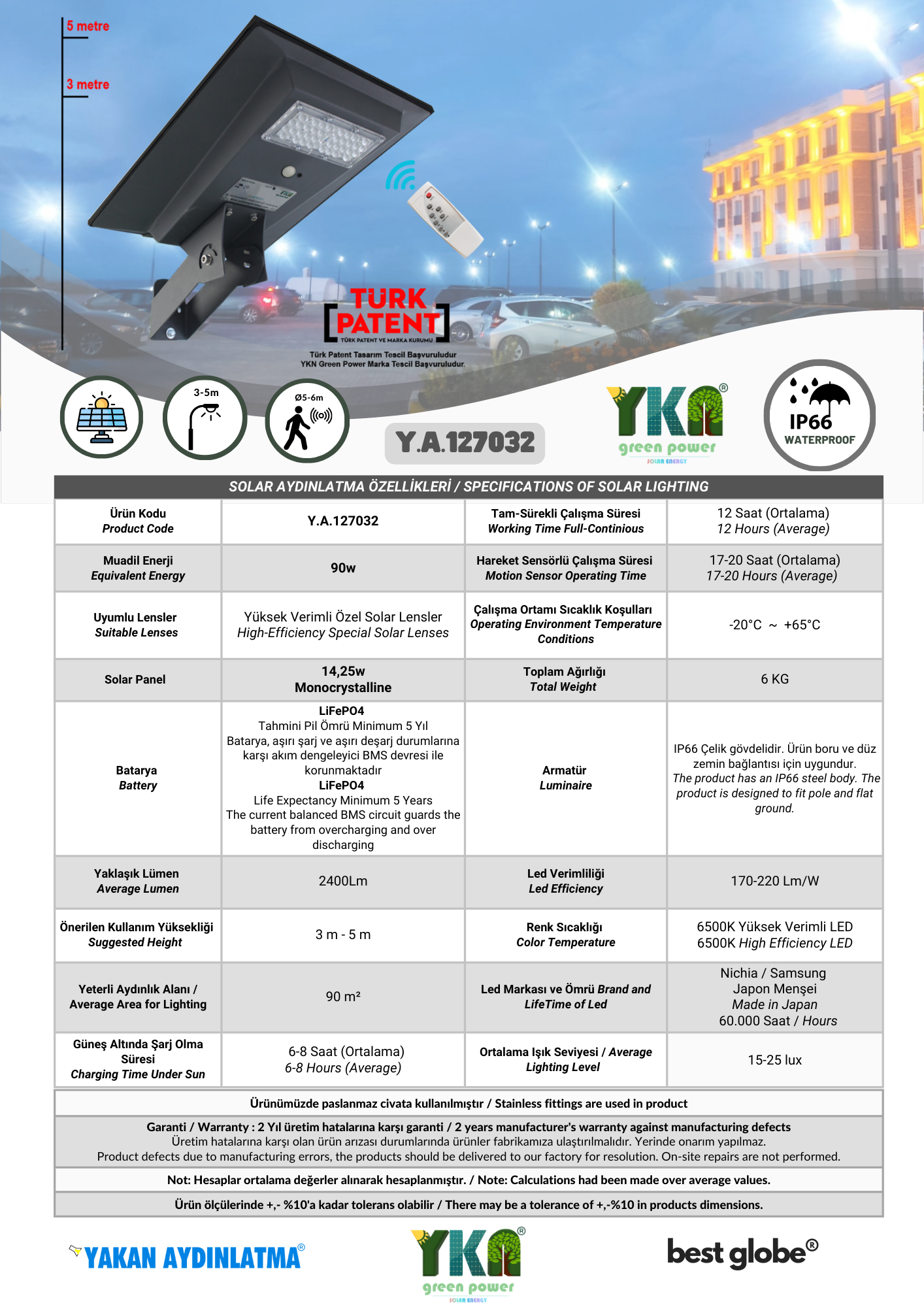

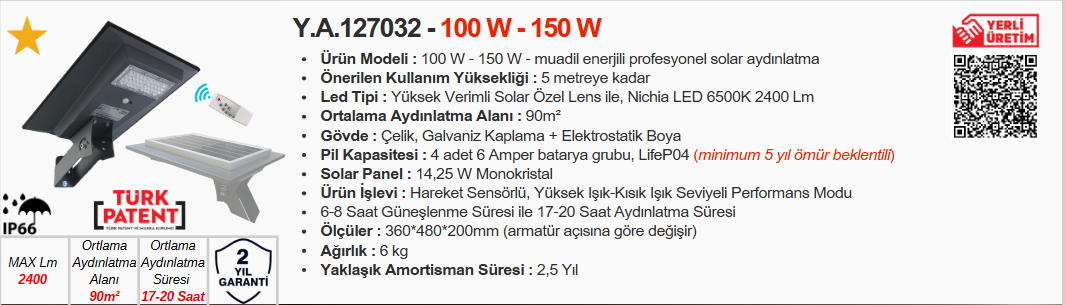

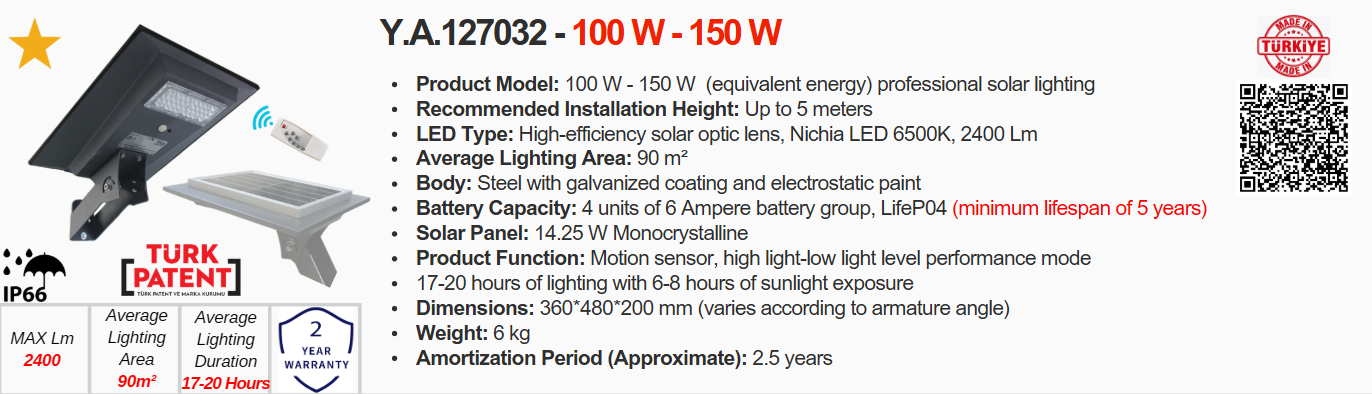

- Width 36x48 cm
- Weight 6 kg
- Equivalent Lighting Power 100–150 watt
- Armature Glass P.M.M.A Acrylic optical lens
- Armature Body Galvanized steel
- Paint Electrostatic powder coating
Material
- Solar system voltage: 3.2 V.
- Monocrystalline solar panel power: 14.25 W.
- Battery: four 6 Ah LiFePO4 battery groups.
- LED: Nichia, 6500 K; luminous flux: 2,400 lm.

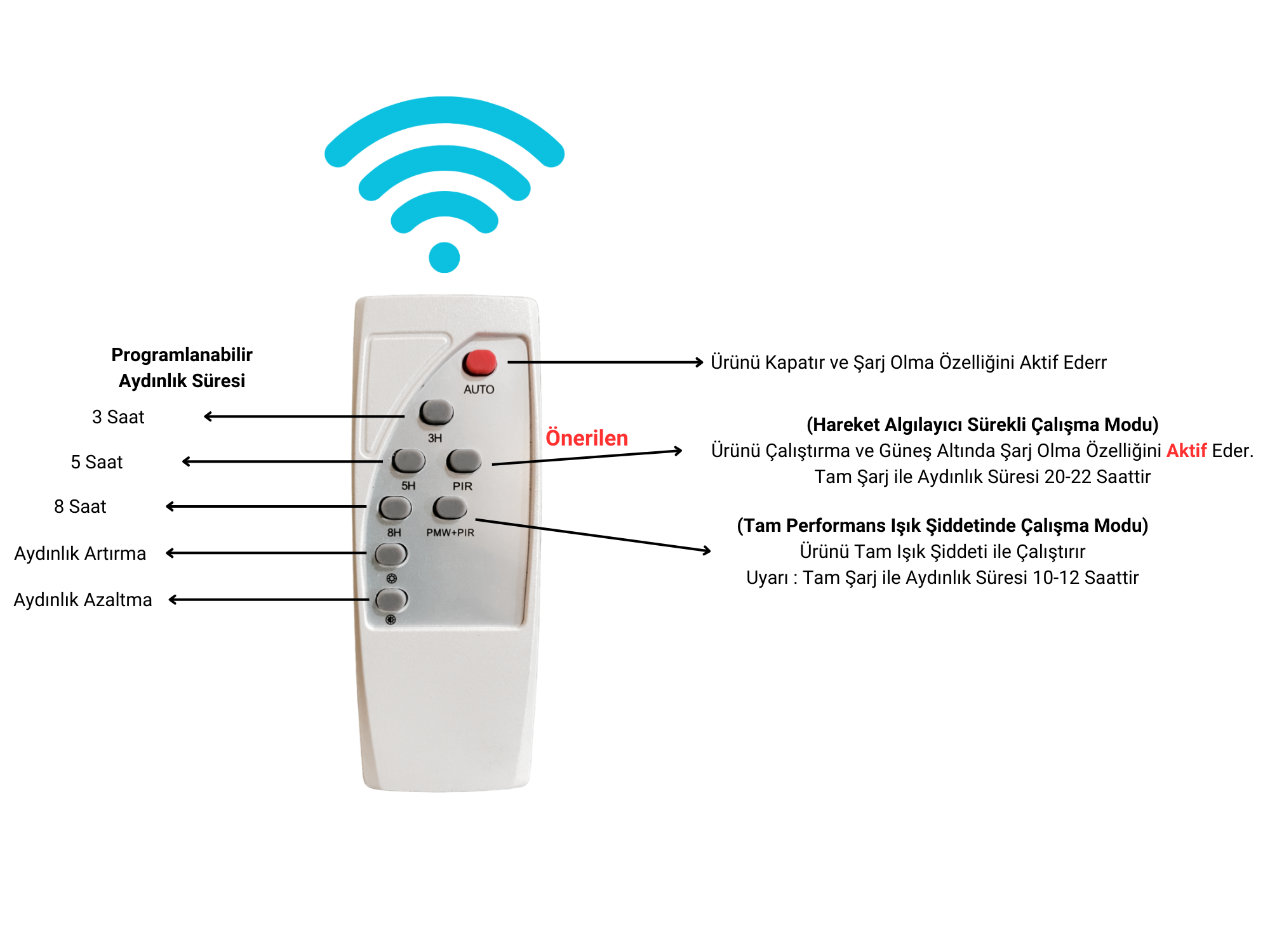

- Motion-sensor operation with high and dimmed light levels.
- Sunlight requirement: 6–8 hours of direct sunlight.
- Average operating time: 17–20 hours.
- Approximate illuminated area: 90 m².
- Recommended mounting height: 3–5 m.
- Stainless-steel screw fasteners are used.
- Expected battery cycle life: 2,000 charge–discharge cycles.
- Ingress protection: IP66.
- Electrical protection: Class III.
- Impact resistance: IK08 (metal body).
Product Description
- An All-in-One solar street light combines the solar panel and lighting unit in one outdoor product.
- For access roads, parks, facility perimeters and open areas requiring an integrated solar luminaire, consider panel orientation alongside the required lighting program.
- For solar street light prices and project quotations, provide the mounting height, project location and night-time operating requirements.
- Operating time and illuminated area may vary with sunlight, season, shading, installation position and the operating program.
- Performance expectation: When the product's use and charging conditions are met, the battery is expected to retain 100% of its initial performance for at least 5 years in energy-saving modes, and the solar panel for at least 10 years. These periods do not mark the end of service life. Performance expectations are separate from the product warranty.
- 2-year warranty.

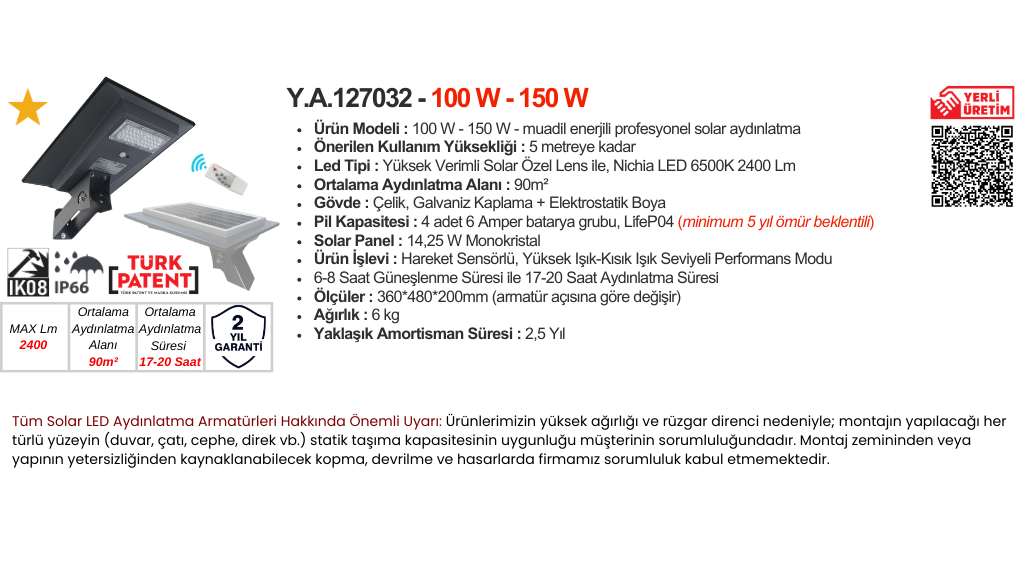

Important installation notice for solar LED luminaires: Because of product weight and wind loads, the customer is responsible for ensuring that the mounting surface (wall, roof, facade, pole, etc.) has adequate structural load-bearing capacity. Our company accepts no liability for detachment, toppling or damage caused by an inadequate mounting surface or structure.
!! IMPORTANT INFORMATION !!
The product must be installed by a qualified electrician.
