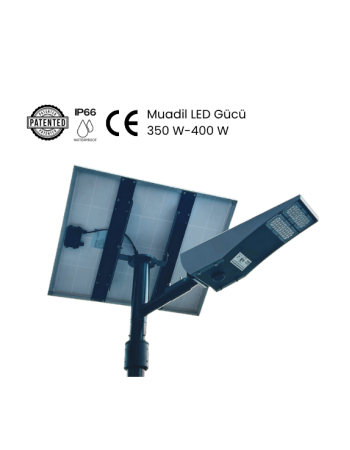

Solar Area Light – YKN Green Power, Area Lighting, 12 V, 350–400 W Equivalent

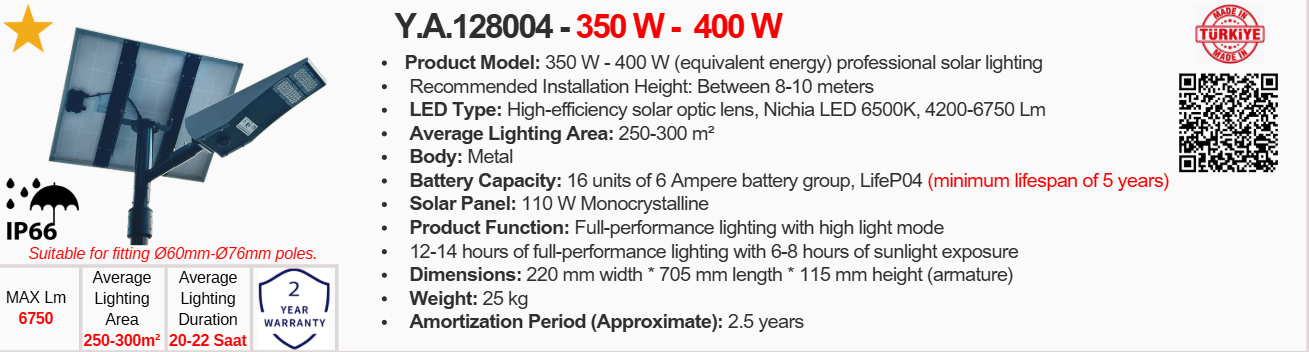

Yakan Lighting Product Code : Y.A.128004
Add Cart How do I get an offer for products? How do I order?
Other Product Images

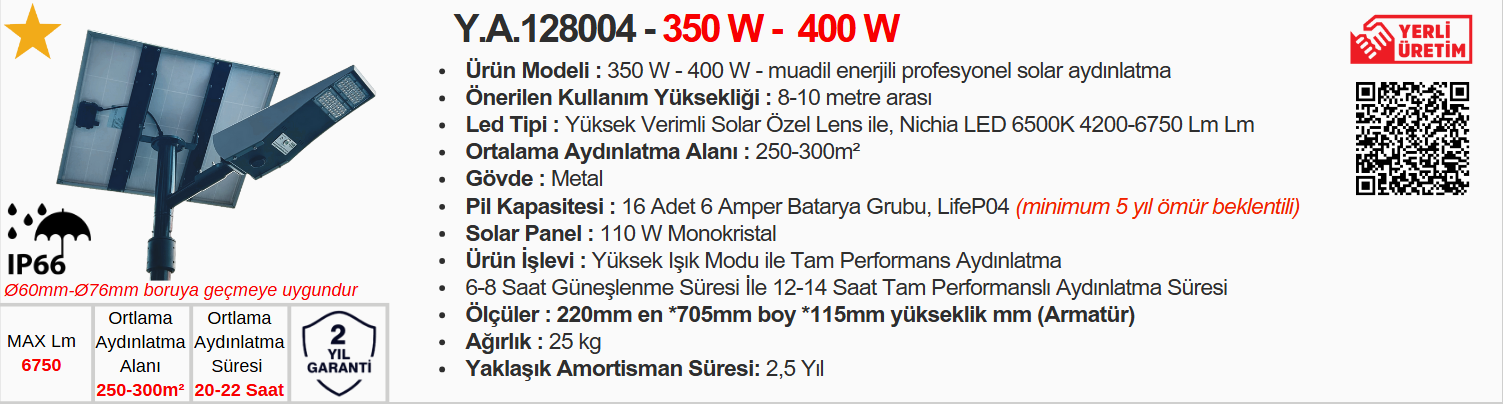

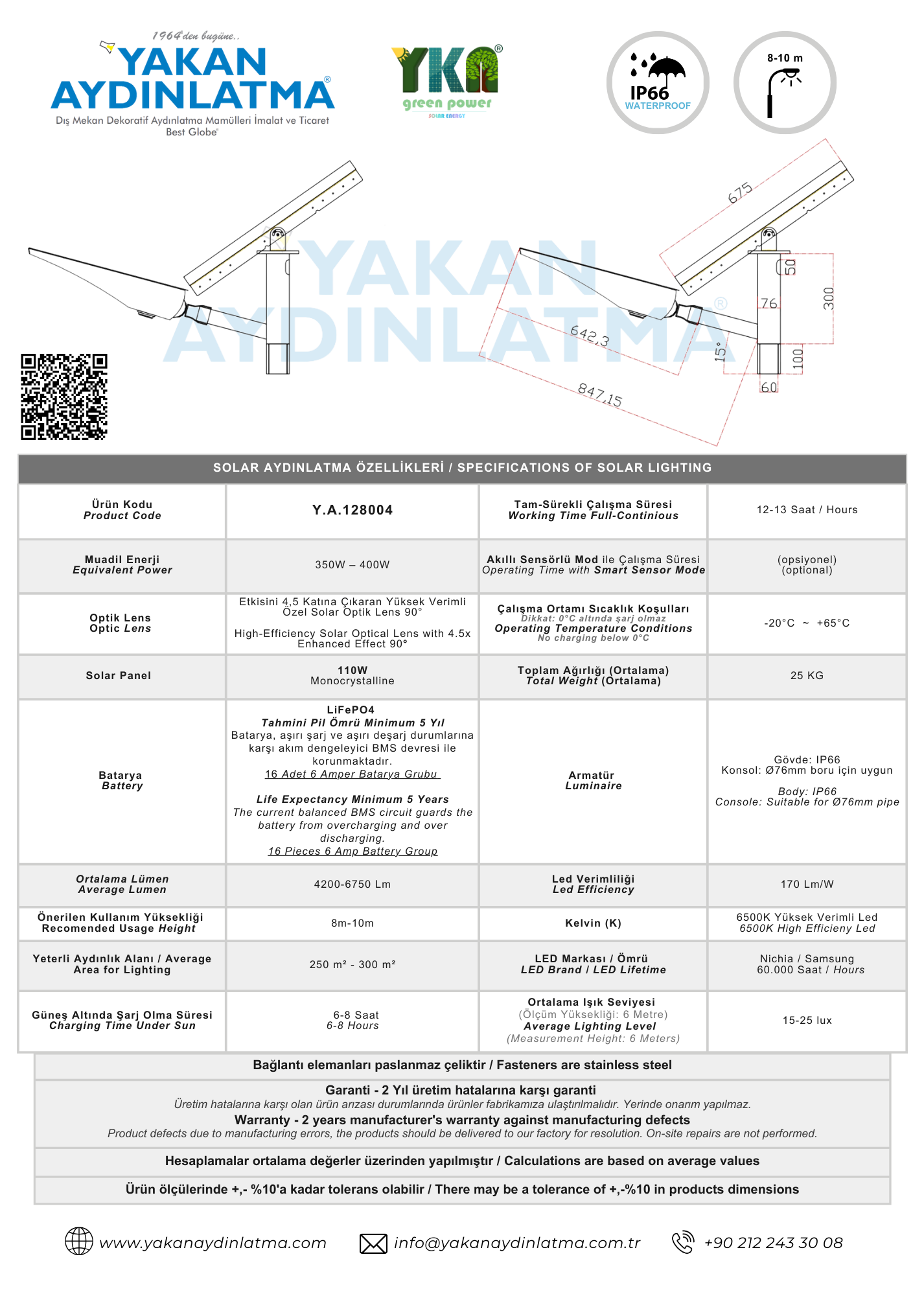

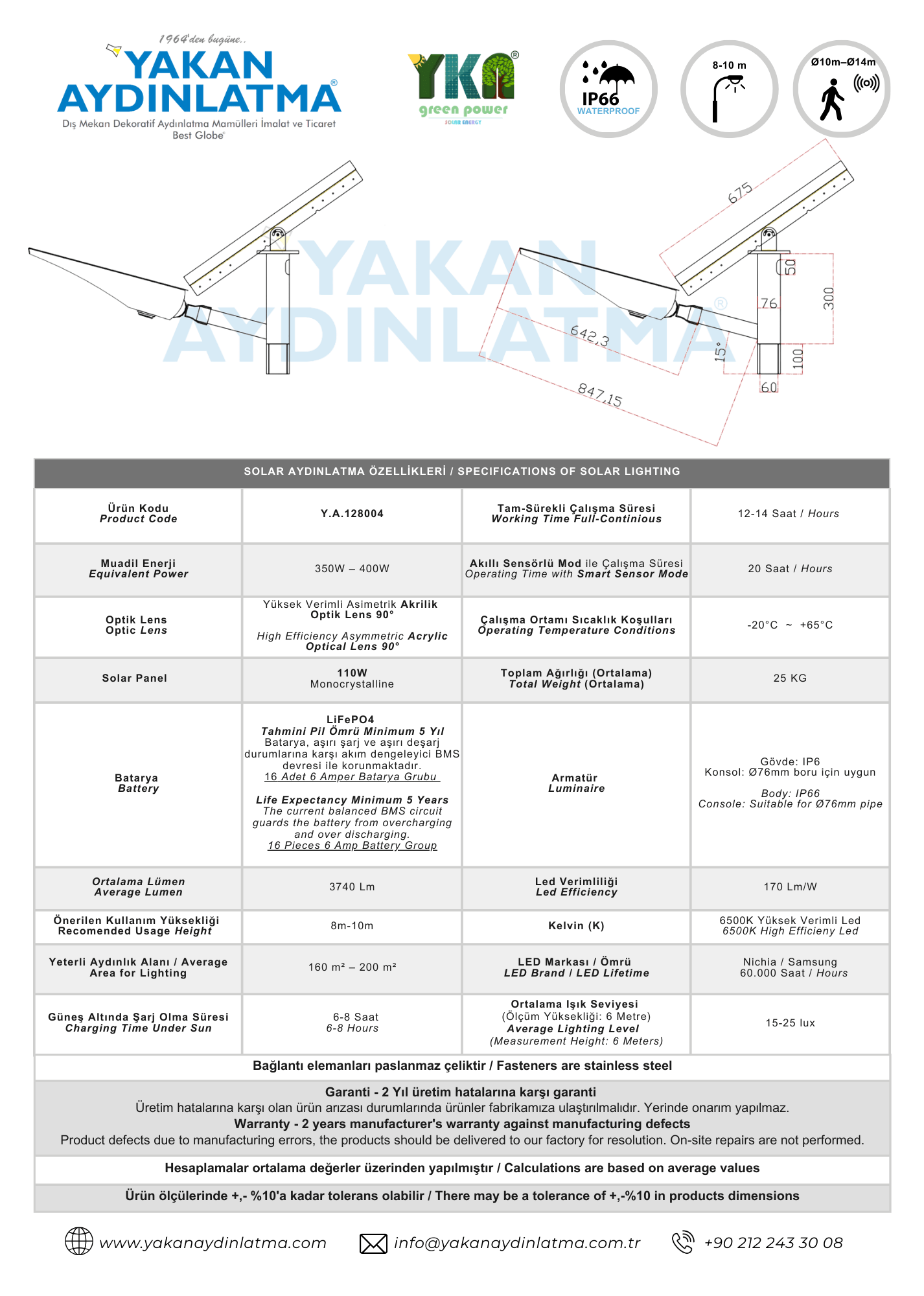

  • Weight 25 kg
  • Equivalent Lighting Power 350–400 watt
  • Arms Steel
  • Armature Glass Asymmetric P.M.M.A Acrylic optical lens
  • Armature Body Metal
  • Paint Electrostatic powder coating
Material
  • Solar system voltage: 12 V.
  • Monocrystalline solar panel power: 110 W.
  • Battery: sixteen 6 Ah LiFePO4 battery groups.
  • LED: Nichia, 6500 K; luminous flux range: 4,200–6,750 lm.
  • Sunlight requirement: 6–8 hours of direct sunlight; average operating time at full output: 12–14 hours.
  • Approximate illuminated area: 250–300 m².
  • Recommended mounting height: 8–10 m.
  • Expected battery cycle life: 2,000 charge–discharge cycles.
  • Ingress protection: IP66.
  • Electrical protection: Class III.
  • Impact resistance: IK08 (metal body).
Product Description
  • This solar area lighting luminaire is suitable for consideration in parks, facility perimeters and open spaces requiring elevated lighting.
  • When planning solar car park lighting, assess the panel, battery, mounting height and operating program alongside the equivalent watt rating.
  • For a solar lighting project quotation, share the site dimensions, pole layout, project location and required night-time operating time.
  • Operating time and illuminated area may vary with sunlight, season, shading, installation position and the operating program.
  • Performance expectation: When the product's use and charging conditions are met, the battery is expected to retain 100% of its initial performance for at least 5 years in energy-saving modes, and the solar panel for at least 10 years. These periods do not mark the end of service life. Performance expectations are separate from the product warranty.
  • 3-year warranty.

Important installation notice for solar LED luminaires: Because of product weight and wind loads, the customer is responsible for ensuring that the mounting surface (wall, roof, facade, pole, etc.) has adequate structural load-bearing capacity. Our company accepts no liability for detachment, toppling or damage caused by an inadequate mounting surface or structure.

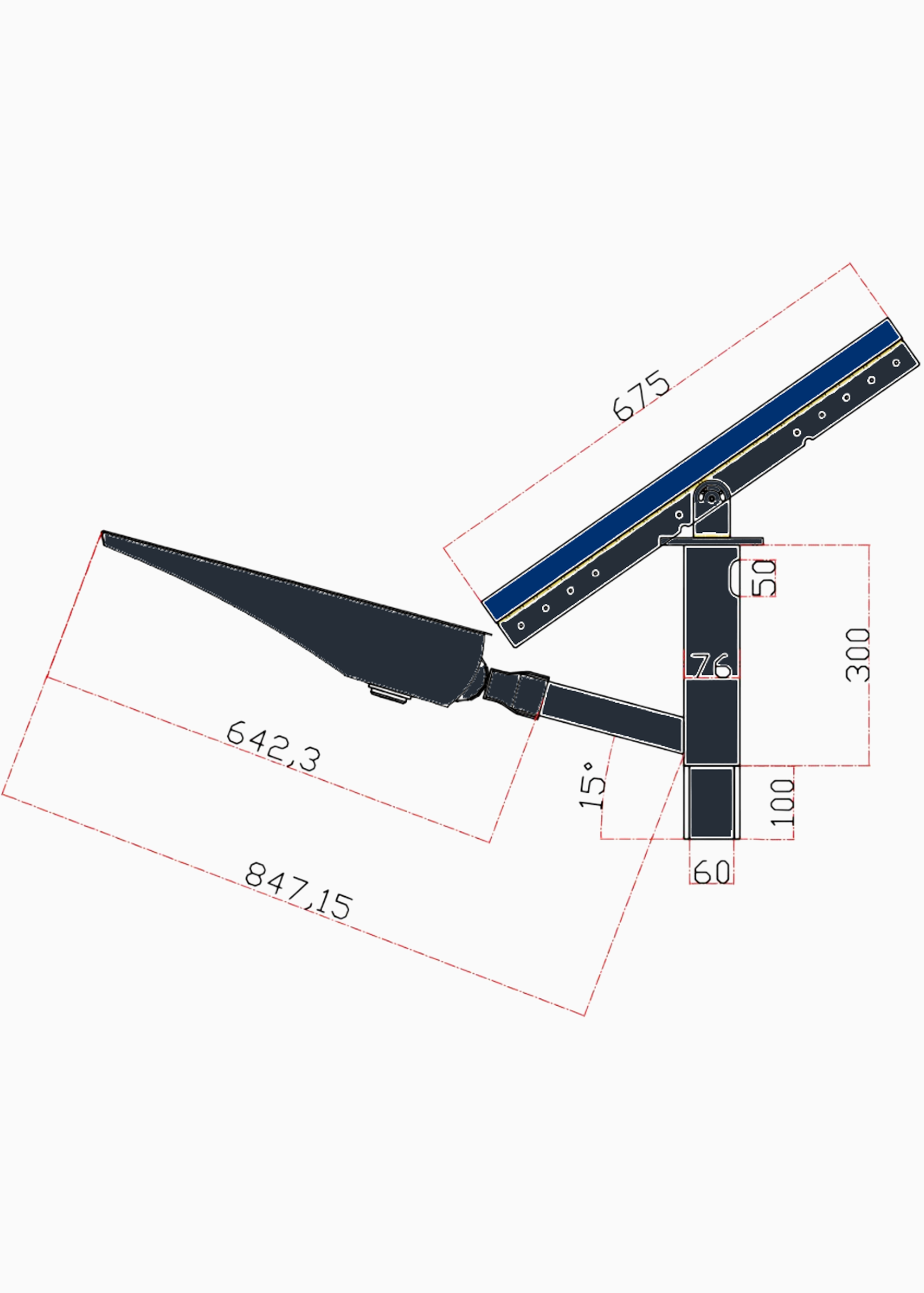

  • Tolerance up to + - 10% in product dimensions.
  • !! IMPORTANT INFORMATION !!
    The product must be installed by a qualified electrician.
