Solar Street Light – YKN Green Power, Angled Arm, 54 × 62 cm, 12 V, 250–300 W Equivalent, All-in-One

Yakan Lighting Product Code : Y.A.127095
Add Cart How do I get an offer for products? How do I order?
Other Product Images
Ratio of product to human body
orantı
54 cm
62 cm

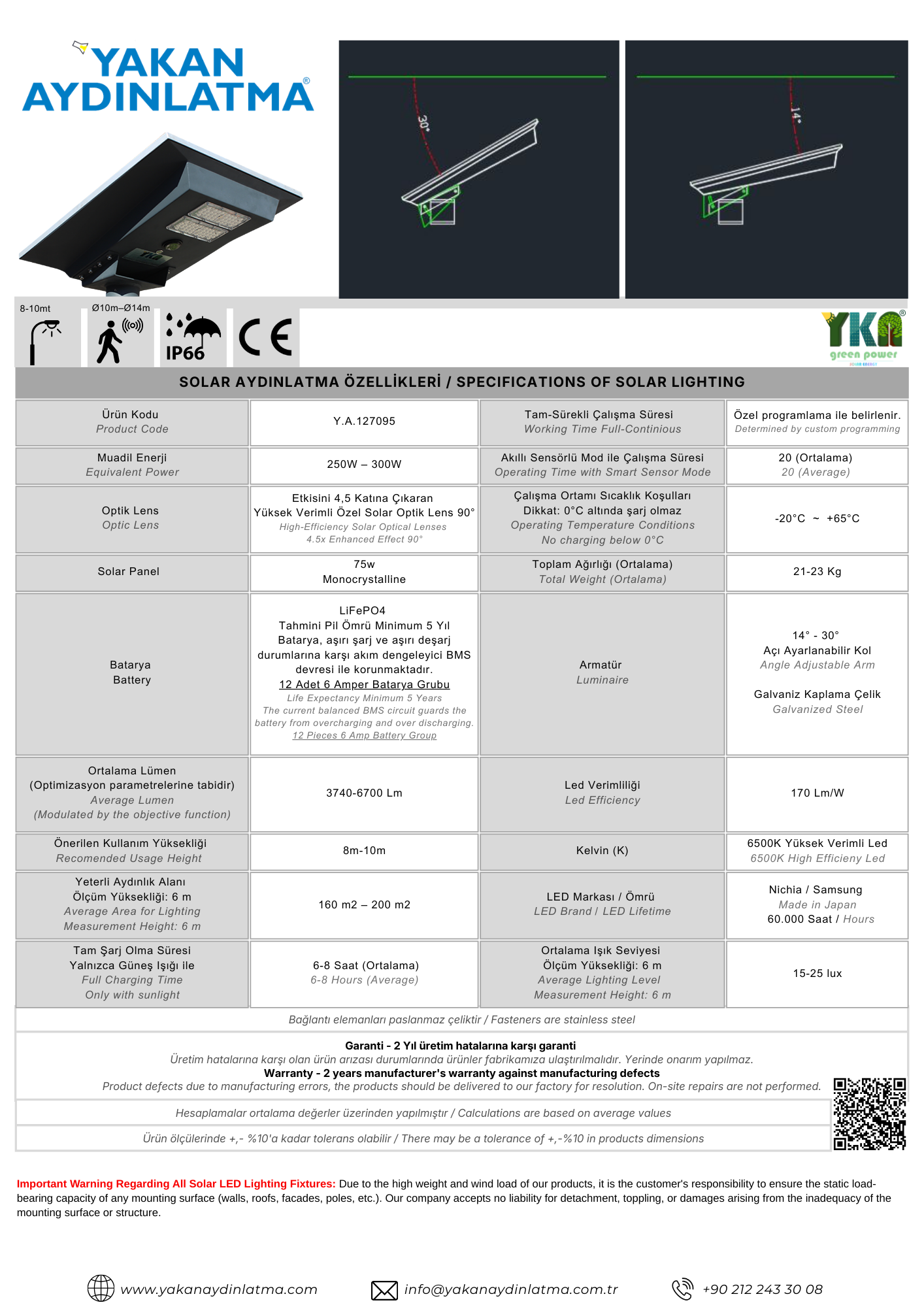

Solar Street Light – YKN Green Power, Angled Arm, 54 × 62 cm, 12 V, 250–300 W Equivalent, All-in-One
  • Width 54 cm
  • Height 62 cm
  • Equivalent Lighting Power 250–300 watt

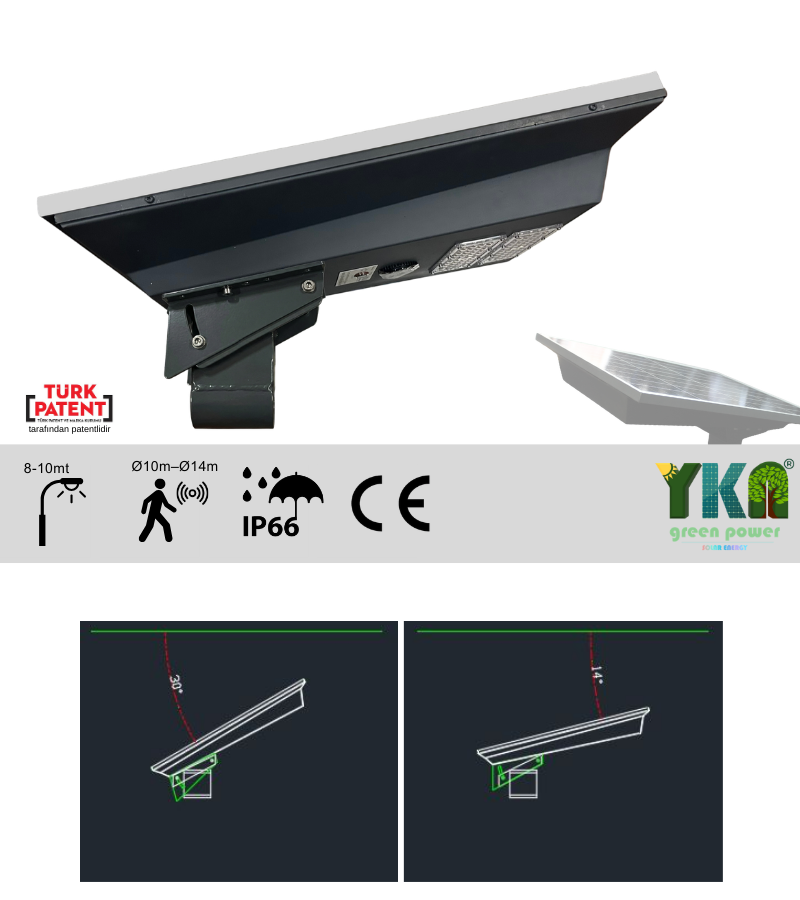

  • Arms Steel arm, adjustable from 14° to 30°
  • Armature Glass P.M.M.A Acrylic optical lens
  • Armature Body Galvanized steel
  • Paint Electrostatic powder coating
Material
  • Solar system voltage: 12 V.
  • Monocrystalline solar panel power: 75 W.
  • Battery: twelve 6 Ah LiFePO4 battery groups; BMS-protected.
  • LED: Nichia / Samsung, 6500 K; luminous flux range: 3,740–6,700 lm.
  • Continuous full-output operating time is determined through custom programming.
  • Average operating time in smart sensor mode: 20 hours.
  • Sunlight requirement: 6–8 hours of direct sunlight.
  • At a measurement height of 6 m: illuminated area 160–200 m²; average illuminance 15–25 lx.
  • Operating temperature: −20 °C to +65 °C; charging does not take place below 0 °C.
  • Recommended mounting height: 8–10 m.
  • Stainless-steel screw fasteners are used.
  • Expected battery cycle life: 2,000 charge–discharge cycles.
  • Ingress protection: IP66.
  • Electrical protection: Class III.
  • Impact resistance: IK08 (metal body).
Product Description
  • An All-in-One solar street light combines the solar panel and lighting unit in one outdoor product.
  • For access roads, parks, facility perimeters and open areas requiring an integrated solar luminaire, consider panel orientation alongside the required lighting program.
  • For solar street light prices and project quotations, provide the mounting height, project location and night-time operating requirements.
  • Operating time and illuminated area may vary with sunlight, season, shading, installation position and the operating program.
  • Performance expectation: When the product's use and charging conditions are met, the battery is expected to retain 100% of its initial performance for at least 5 years in energy-saving modes, and the solar panel for at least 10 years. These periods do not mark the end of service life. Performance expectations are separate from the product warranty.
  • 3-year warranty.

Important installation notice for solar LED luminaires: Because of product weight and wind loads, the customer is responsible for ensuring that the mounting surface (wall, roof, facade, pole, etc.) has adequate structural load-bearing capacity. Our company accepts no liability for detachment, toppling or damage caused by an inadequate mounting surface or structure.

  • Tolerance up to + - 10% in product dimensions.
  • !! IMPORTANT INFORMATION !!
    The product must be installed by a qualified electrician.
