Slip-On Pole-Top Bracket – Double Arm

Y.A.165022 - Outdoor LED Lighting Armature
Yakan Lighting Product Code : Y.A.165022
Add Cart How do I get an offer for products? How do I order?

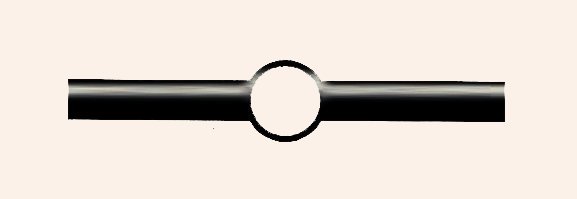

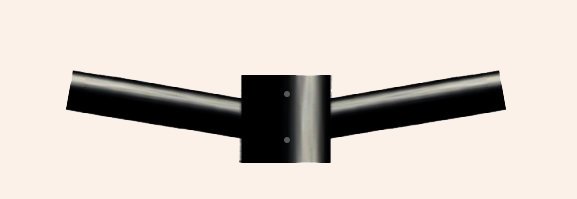

Other Product Images
  • Weight 4 kg
  • Arms 2 steel tube arms
  • Armature Body Steel tube
  • Paint Electrostatic powder coating
Material
  • Steel grade: S235.
  • Tube wall thickness: 2.5 mm.
  • The mounting sleeve provides a slip-on connection to a Ø76 mm tubular pole.
  • Arm tube diameter: Ø42 mm.
  • Each arm is 25 cm long.
  • The luminaire mounting tube is inclined at 10° to the horizontal.
  • Reference values declared in the TS EN 40-5 documentation: wind speed 31 m/s; area 2 × 0.18 m²; load 2 × 20 kg.
  • TSE-certified steel tubes are used.
Product Description
  • This luminaire mounting bracket provides a load-bearing connection between the lighting pole and luminaire.
  • For projects requiring an LED lighting pole bracket, provide the pole diameter and luminaire connection dimensions with your order.
  • 2-year warranty.
  • Tolerance up to + - 10% in product dimensions.
    • !! IMPORTANT INFORMATION !!
    The product must be installed by a qualified electrician.
