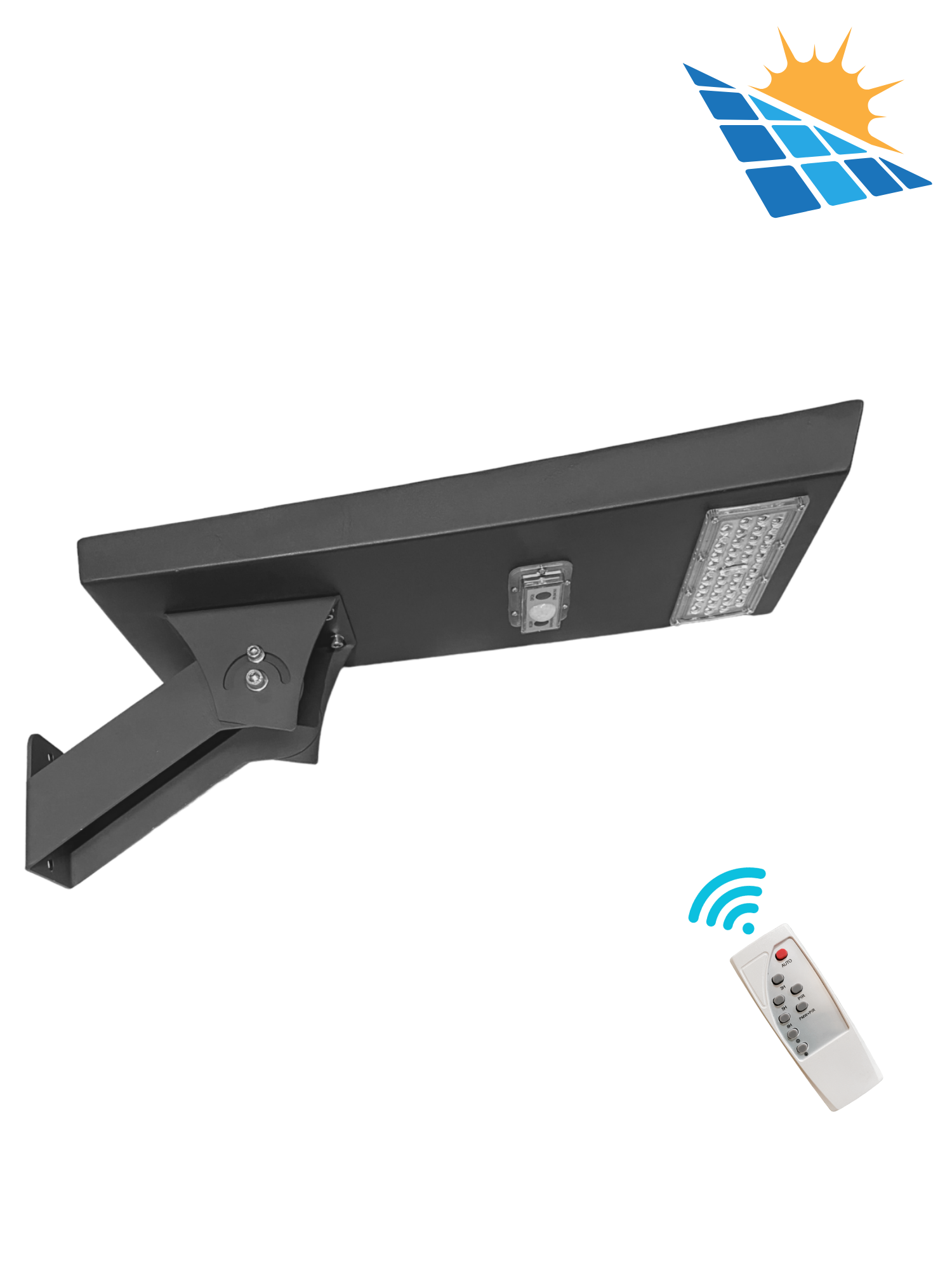

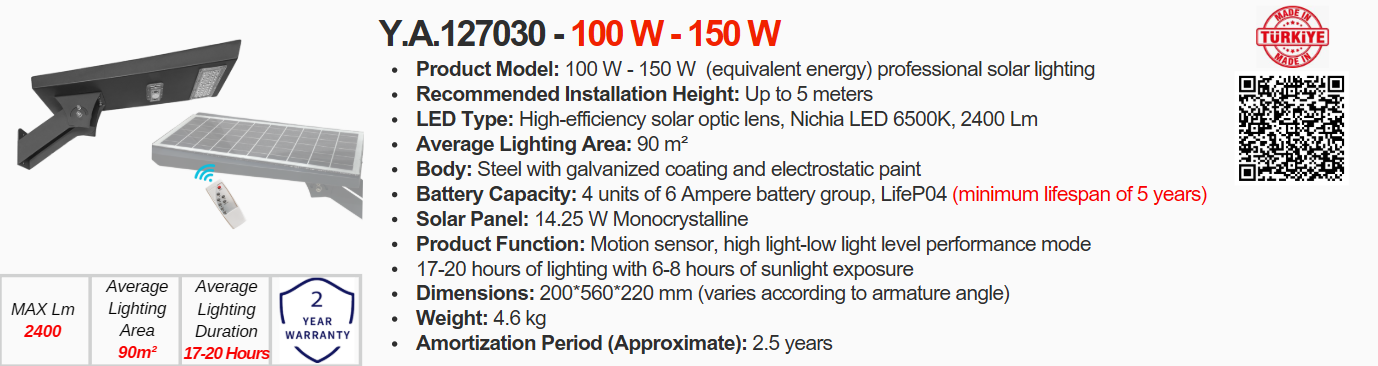

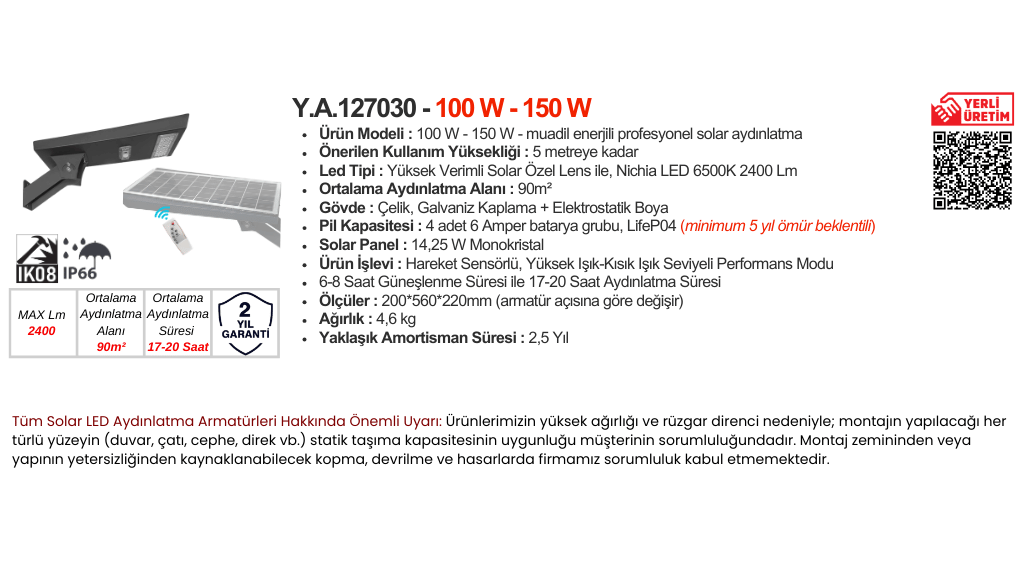

YKN Green Power 3.2 V Solar Street Light – 100–150 W Equivalent

Yakan Lighting Product Code : Y.A.127030
Add Cart How do I get an offer for products? How do I order?
Other Product Images
  • Weight 4.6 kg
  • Equivalent Lighting Power 100–150 watt
  • Arms Steel
  • Armature Glass P.M.M.A Acrylic optical lens
  • Armature Body Galvanized steel
  • Paint Electrostatic powder coating
Material

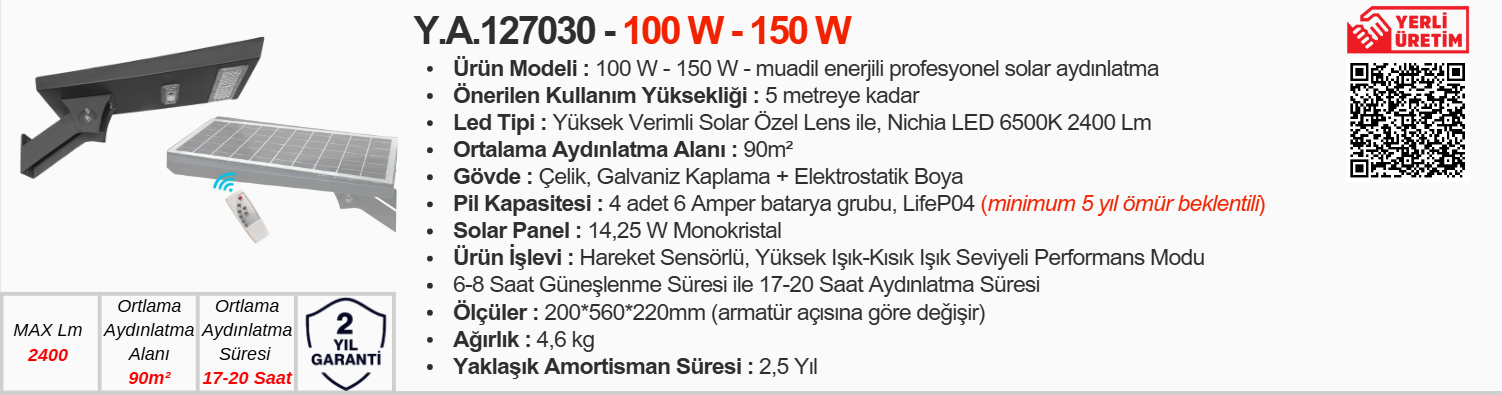

  • Solar system voltage: 3.2 V.

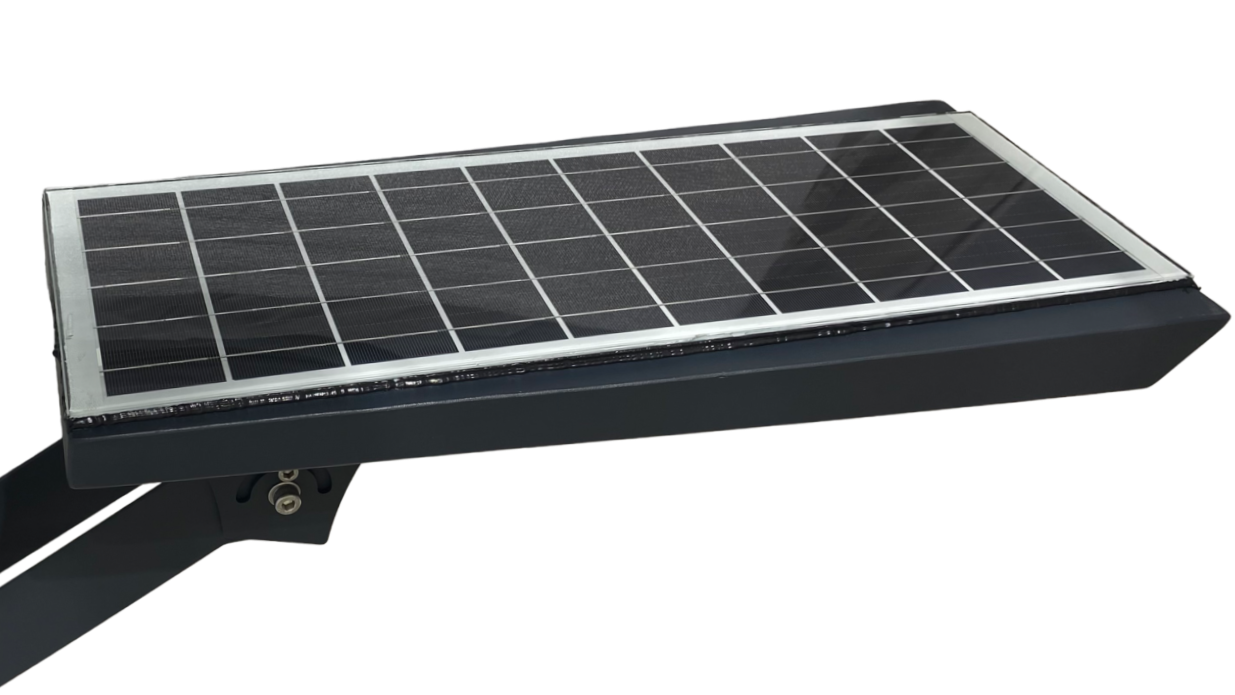

  • Monocrystalline solar panel power: 14.25 W.
  • Battery: four 6 Ah LiFePO4 battery groups.
  • LED: Nichia, 6500 K; luminous flux: 2,400 lm.

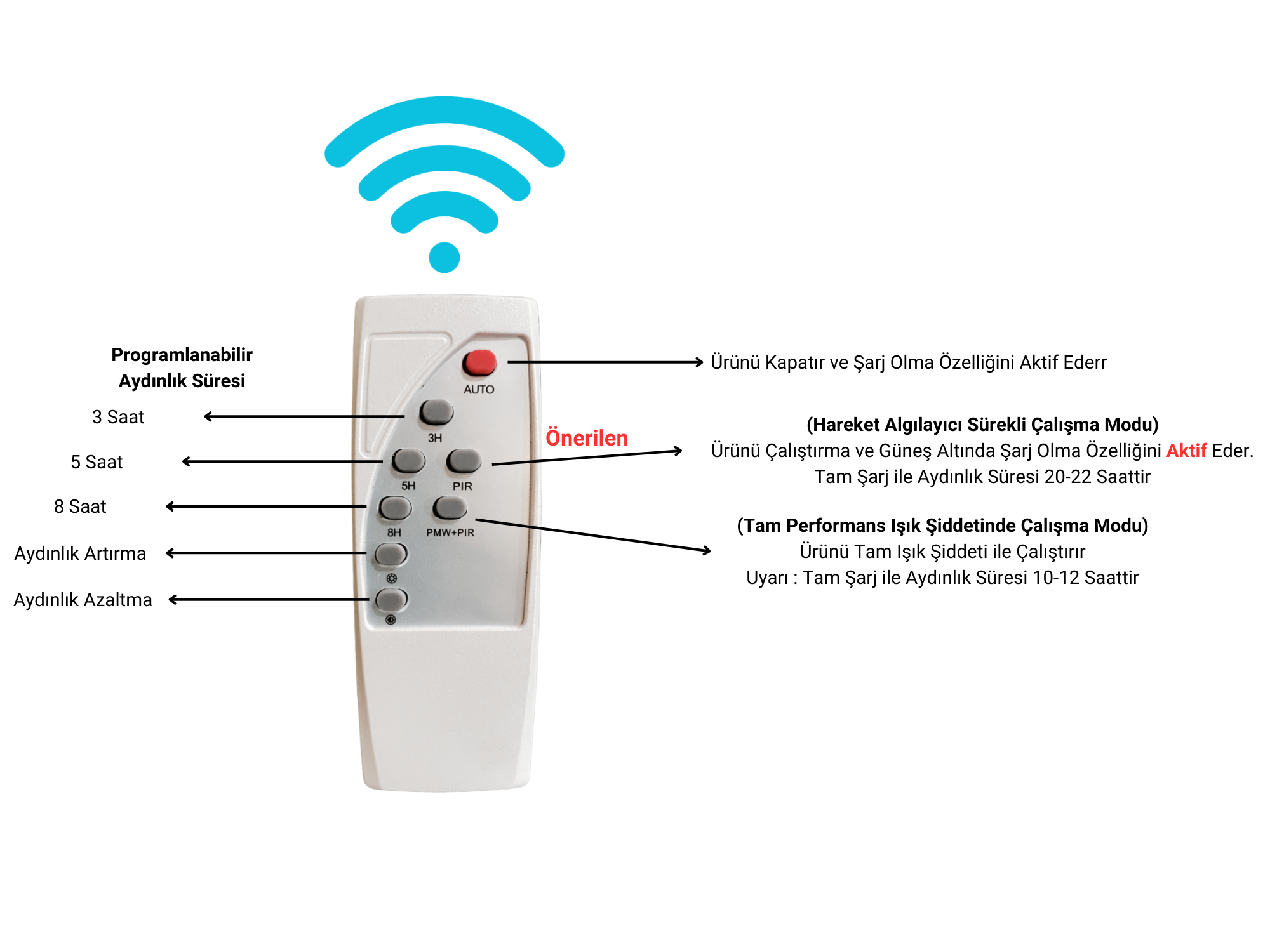

  • Motion-sensor operation with high and dimmed light levels.
  • Sunlight requirement: 6–8 hours of direct sunlight.
  • Average operating time: 17–20 hours.
  • Approximate illuminated area: 90 m².
  • Dimensions, depending on the luminaire angle: 200 × 560 × 220 mm.
  • Recommended mounting height: 3–5 m.
  • Stainless-steel screw fasteners are used.
  • Expected battery cycle life: 2,000 charge–discharge cycles.
  • Ingress protection: IP66.
  • Electrical protection: Class III.
  • Impact resistance: IK08 (metal body).
Product Description
  • A solar street light can be considered as an alternative to mains-connected lighting in parks, residential access roads and around facilities.
  • Select a solar road lighting luminaire by considering panel sunlight exposure, mounting height and the required night-time operating program together.
  • For solar street light prices, provide the installation location, project quantity and lighting requirements.
  • Operating time and illuminated area may vary with sunlight, season, shading, installation position and the operating program.
  • Performance expectation: When the product's use and charging conditions are met, the battery is expected to retain 100% of its initial performance for at least 5 years in energy-saving modes, and the solar panel for at least 10 years. These periods do not mark the end of service life. Performance expectations are separate from the product warranty.
  • 2-year warranty.

Important installation notice for solar LED luminaires: Because of product weight and wind loads, the customer is responsible for ensuring that the mounting surface (wall, roof, facade, pole, etc.) has adequate structural load-bearing capacity. Our company accepts no liability for detachment, toppling or damage caused by an inadequate mounting surface or structure.

  • Tolerance up to + - 10% in product dimensions.
  • !! IMPORTANT INFORMATION !!
    The product must be installed by a qualified electrician.
